ControlLogix with ControlNet Routing Path

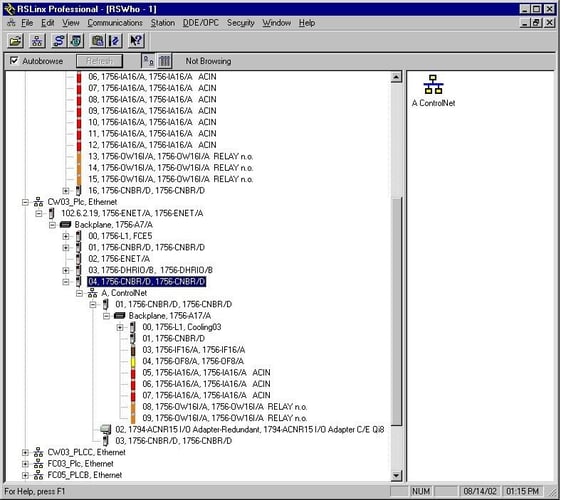

How do I use the TOP Server ControlLogix Ethernet driver to connect to a ControlLogix on a ControlNet network through a ControlLogix on an Ethernet network? (See below image.)
711 - AB

The routing path should be the following: 102.6.2.2,1,[4,2,1,1],0

where

  • 102.6.2.2 represents the IP address of the Ethernet module
  • 1 represents the backplane of the first ControlLogix
  • 4 represents the ControlNet slot number
  • 2 represents the A port in the module
  • 1 represents the node of the destination ControlNet module
  • 1 represents the backplane of the second ControlLogix
  • 0 represents the slot number of the CPU
